PRODUCT details
Remarks:
1.42.7mm (1.69")O.D tube diameter ×2.5mm (0.095" ) wall thickness of Frame leg.
2.Locking space: 4'
3.Lock Pin type: drop lock
4.Surface treament: Powder Coated, Painting, EP, HDG.
5.Material: Carbon Struture Steel Grade Q235 or Q345 for vertical Frame leg.
6.Tube thickness, lock pin type, surface, materials are also available upon customers' specific request.
Product specifications
Code Description Height Width Weight
Inches M Inches M kgs lbs

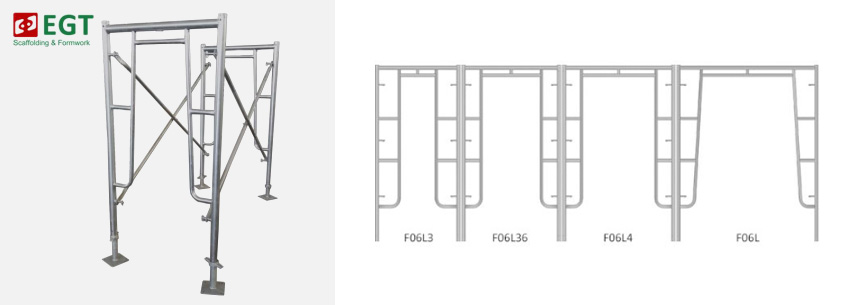

F06L 6'4" × 5' Walkthrough Frame 6'4" 1.93 5' 1.524 20.9 46
F06L4 6'4" × 4' Walkthrough Frame 6'4" 1.93 4' 1.219 20 44
F06L36 6'4" × 3'6'' Walkthrough Frame 6'4" 1.93 3'6'' 1.067 19.2 42.3
F06L3 6'4" × 3'6'' Walkthrough Frame 6'4" 1.93 3' 0.914 18.7 41.3
