PRODUCT details

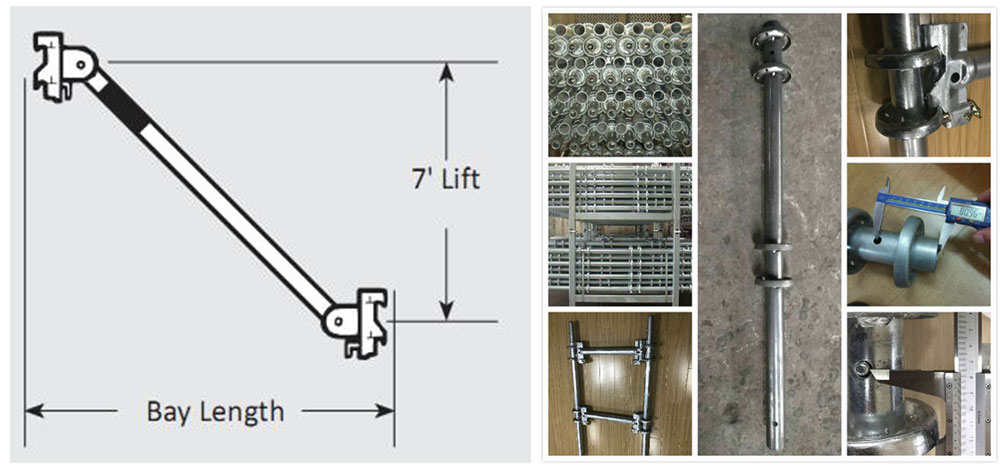

S-Lock Scaffolding Diagonal Brace is one of the main compoents used to connect the vertical standard and the ledger and the transom so its make itself an entire scaffolding system.
Product specifications
Code Description Bay Length(M) Height Weight (Kg)
SLDB30 3’ Diagonal Bay Brace 0.91 7’ 8.26
SLDB36 3’-6’’ Diagonal Bay Brace 1.07 7’ 8.39
SLDB39 3’-9’’ Diagonal Bay Brace 1.14 7’ 8.45
SLDB40 4’ Diagonal Bay Brace 1.22 7’ 8.54
SLDB46 4’-6’’ Diagonal Bay Brace 1.37 7’ 8.72
SLDB50 5’ Diagonal Bay Brace 1.52 7’ 8.90
SLDB60 6’ Diagonal Bay Brace 1.83 7’ 9.30
SLDB70 7’ Diagonal Bay Brace 2.13 7’ 9.76
SLDB80 8’ Diagonal Bay Brace 2.44 7’ 11.85
SLDB90 9’ Diagonal Bay Brace 2.74 7’ 12.49
SLDB100 10’ Diagonal Bay Brace 3.04 7’ 13.21
